Applications

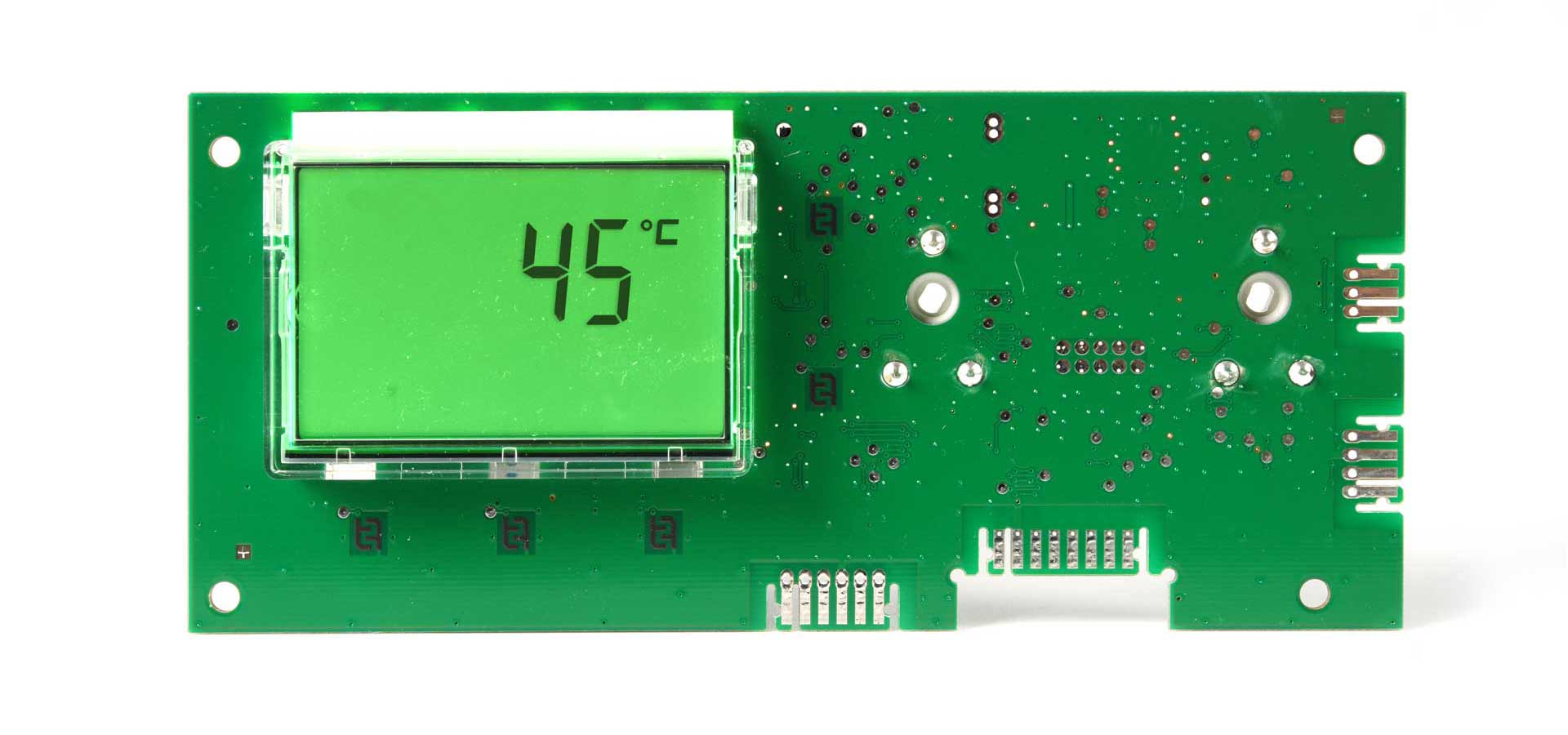

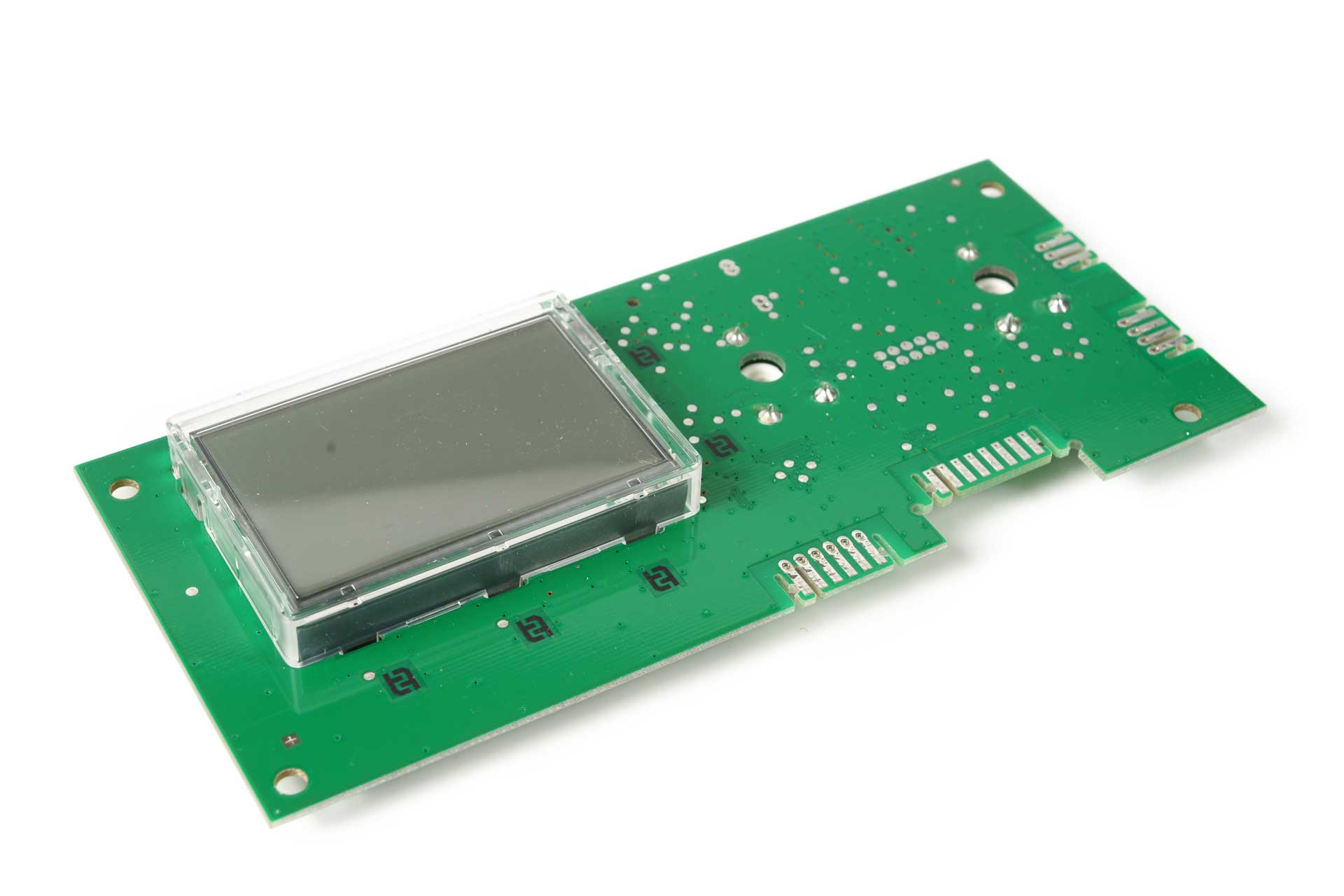

The electronic boards of UI20 external User Interface’s family are designed to be used together with main burner control PCBs.
It integrates a wide icons LCD different backlight colors, knobs and push buttons.
Compatibility
The UI20 family PCBs can be interfaced with the following platforms:
- MIAB burner control
- BCN20 burner control
- BCS30 burner control
General Features
- 88 icons LCD
- Green backlight (white and blue are available as optional)
- 2 knobs and 3 Rubber push buttons
- Communication bus to interface with external burner control
- Water pressure sensor management
